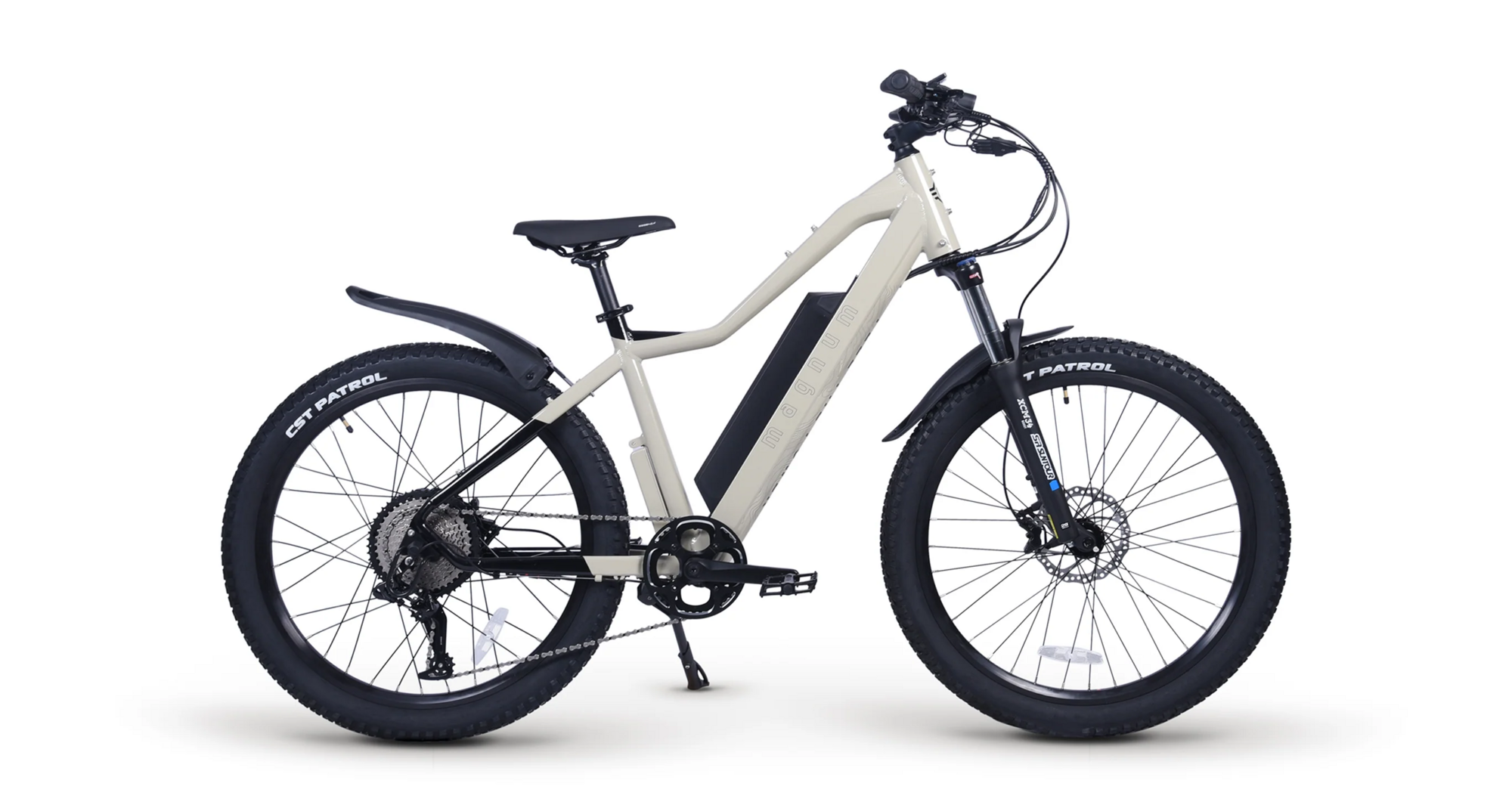

The Peak T7 begins where the road ends! It has a torque pedal assist sensor that combines power from the rider and the motor for the ultimate in smoothness and control. A wide range drive train, robust power system make the Peak T7 an ideal choice for trail riding.
- Category: Mountain
- Class: Can be configured to a Class 1, 2, or 3 E-Bike.
- Frame Type: High-step, MTB Cross-Country
- Seating: Active
- Perfect For: Gravel / Trails / Off-road
Long-range (up to 65 miles) battery for the freedom and power to tackle longer rides
65 Miles (105 Kilometers) Max Range
10 Hours Charge Time
TORQUE-SENSING PEDAL ASSIST
Amplify your effort.
The torque-sensing pedal assist feature adds just the right amount of power from the motor to amplify your effort. It feels just like riding a regular bicycle, but with greater ease and comfort.
|Seat Tube||19" (48 cm)|
|Reach||14.5" (37 cm)|
|Stand Over Height||31" (78.5 cm)|
|Virtual Top Tube Length||23.25" (59 cm)|
|Min Saddle Height||22" (56 cm)|
|Max Saddle Height||31" (78.5 cm)|
|Width||28.75" (73 cm)|
|Wheelbase||45.75" (116 cm)|
|Length||74" (188 cm)|
|Total Weight||66 lbs. (30 kg)|
|Battery Weight||9 lbs. (4 kg)|
|Recommended Minimum Rider Height||5’6"|
|Tires||CST Patrol 27.5 x 2.8"|
|Brakes||Logan Hydraulic Disc Brakes|
|Saddle||Selle Royal Essenza+|
|Crankset||Aluminum Alloy, 42T, 170mm|
|Motor||Bafang Rear Gear Hub-Drive Motor 750W Nominal Output. Up to 28 mph with Pedal Assist, 20 mph with Throttle.|
|Battery||48V, 20Ah, 960Wh|
|Charger||30-60 miles per charge.|
|Controller/Display||Magnum Branded VeloFox, 8 x 7 cm. Display Screen, Backlit Monochrome LCD. Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time. Torque Sensing Pedal Assist, Trigger Throttle, Walk Mode.|
* Subject to change without notice.
|Tan/Black / Large / 27.5-inch||789554756259|
|Blue/Black / Large / 27.5-inch||789554756228|
|Forest/Black / Large / 27.5-inch||789554756235|
|Grey/Black / Large / 27.5-inch||789554756242|
