Magnum Bikes Summit 27.5

Magnum Bikes Summit 27.5
  • Color: Black/Blue
  • Color: Black/Green
  • Color: Black/Sand
  • Color: Black/Copper
Wheel Size:
Please select options
Sorry, this item is currently not available to order online. Please call 801-484-0404 (Sugarhouse) or 801-683-0166 (Bountiful) for product details or availability.

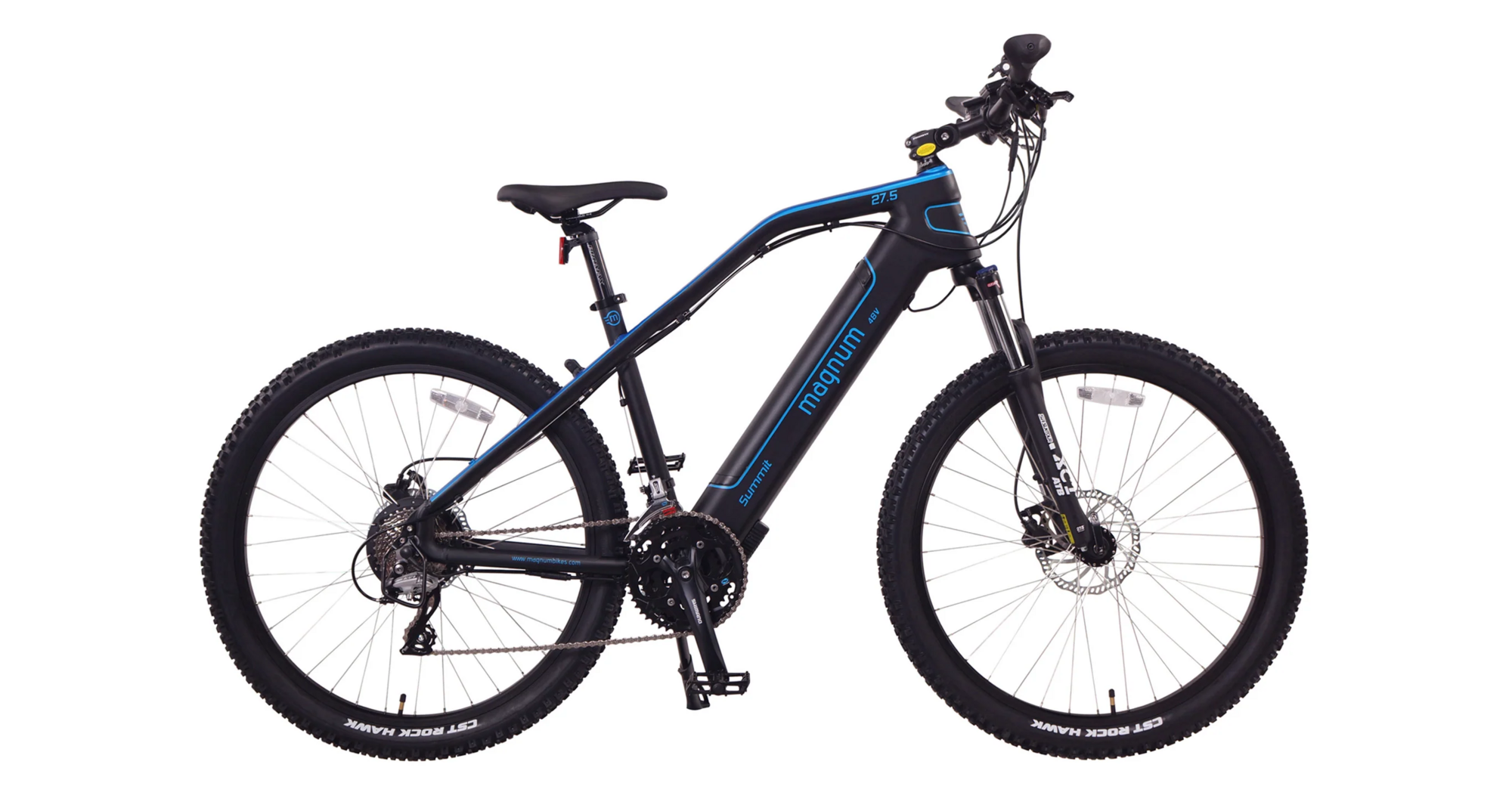

The Summit 27 trail/mountain e-bike's stand-out features are the fully integrated battery for a sleek design and a range of accent colors span the top of the down tube. 48v, 500w power system with max speed of 25 MPH with pedal assist and 20 MPH throttle only. The stunning design and high-end components will turn heads.

- Category: Mountain
- Class: Can be configured to a Class 1, 2, or 3 E-Bike.
- Frame Type: High-step
- Seating: Active
- Perfect For: Paved / Light Trails / Recreation

The heart of the Magnum Summit is the integrated 48V / 13Ah / 624Wh battery that powers rides up to 50 miles long, depending on variables like body and cargo weight, terrain, wind direction, and pedal assist level.

50 miles (80 Kilometers) Max Range
6.5 Hours Charge Time

Stunning design and a range of accent colors

With its sleek and functional design and striking paint schemes and accent colors, the Summit 27.5 looks as stunning as it rides.

Seat Tube18" (46 cm)
Reach 15.75" (40 cm)
Stand Over Height 34.25" (87 cm)
Virtual Top Tube Length 23.25" (59 cm)
Min Saddle Height 21.75" (55 cm)
Max Saddle Height 30" (76 cm)
Width 30" (76 cm)
Wheelbase 44" (112 cm)
Length 73.25" (186 cm)


Fork SR Suntour XCT ATB 27.5”
Stem Adjustable w/tools
Tires CST Rock Hawk
Brakes Tektro Hydraulic Disc Brakes
Saddle Promax
Crankset Prowheel 3-Chainring Aluminum Alloy
Shifters Shimano 8-Speed
Tape/Grips Velo Flat Rubber
Motor Das Kit Rear Gear Hub-Drive Motor 500W Nominal Output. 25 mph with Pedal Assist, 20 mph with Throttle.
Pedals Wellgo
Battery 48V, 13Ah, 624Wh
Charger 25-45miles per charge.
Controller/Display Das-Kit C7, Backlit, Monochrome LCD. Power Output Indicator(6 Bars), Battery Level (6 Bars), Speed, Assist Level (0-6), Odometer, Trip Distance, Trip Time, Battery Voltage. Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode.

* Subject to change without notice.


Part Numbers

Option UPC
Black/Blue / Large / 27.5-inch 726152302334
Black/Green / Large / 27.5-inch 726152302341
Black/Sand / Large / 27.5-inch 726152302365
Black/Copper / Large / 27.5-inch 726152302358
