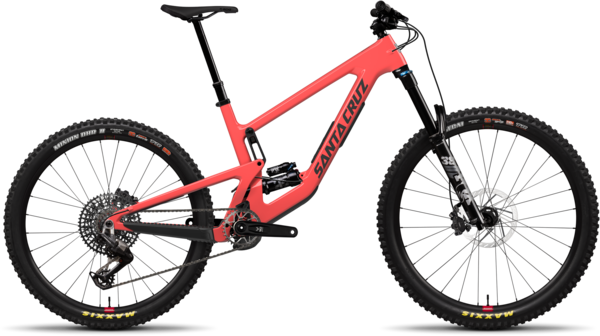

Santa Cruz Nomad 90
$5,899.99
Details
Load up the van, hit the road, climb a mountain, hammer it back down, huck the gap, throw the bike back in the van, drive to the bike park and do laps on laps. Hell, you could even rock up to the startline of the world's wildest races. The Nomad’s forte is being ready and willing to go wherever, whenever. The only thing it needs is a rider willing to press send.
| Frame Size | Small | Medium | Large | X-Large | XX-Large |
|---|---|---|---|---|---|
| Geometry Position | High/Low | High/Low | High/Low | High/Low | High/Low |
| Reach (mm) | 430/427 | 455/452 | 475/472 | 495/492 | 520/517 |
| Stack (mm) | 616/618 | 625/627 | 638/640 | 656/658 | 670/672 |
| Head Tube Angle | 63.8/63.5 | 63.8/63.5 | 63.8/63.5 | 63.8/63.5 | 63.8/63.5 |
| Seat Tube Angle | 77.2/77 | 77.4/77.2 | 77.9/77.6 | 77.8/77.5 | 77.7/77.5 |
| Wheelbase (mm) | 1209/1209 | 1239/1240 | 1269/1270 | 1301/1302 | 1336/1337 |
| Front Center (mm) | 770/770 | 799/799 | 826/826 | 855/855 | 886/886 |
| Rear Center (mm) | 439/440 | 440/441 | 443/444 | 446/447 | 450/451 |
| BB Height (mm) | 346/343 | 346/343 | 346/343 | 346/343 | 346/343 |
| BB Drop - Front (mm) | 27/30 | 27/30 | 27/30 | 27/30 | 27/30 |
| BB Drop - Rear (mm) | 45880 | 45880 | 45880 | 45880 | 45880 |
| Standover Height (mm) | 709/705 | 716/713 | 723/719 | 722/717 | 725/720 |
| Head Tube Length (mm) | 90/90 | 100/100 | 115/115 | 135/135 | 150/150 |
| Seat Tube Length (mm) | 380/380 | 405/405 | 430/430 | 460/460 | 500/500 |
| Top Tube Length (mm) | 570/571 | 594/594 | 612/613 | 637/638 | 666/667 |
| Frame Size | Rider Height (cm) | Rider Height (in) |
|---|---|---|
| Small | 154cm-165cm | 5'1"-5'5" |
| Medium | 165cm-175cm | 5'5"-5'9" |
| Large | 175cm-185cm | 5'9"-6'1" |
| X-Large | 185cm-193cm | 6'1"-6'4" |
| XX-Large | 193cm-200cm | 6'4"-6'7" |
Specs
| Fork | FOX 38 Float Performance, Grip, 170mm |
|---|---|
| Rear Shock | FOX Float X Performance, 230x65 |
| Rims | Reserve 30|TR AL |
| Hubs |
Front: DT Swiss 370, 15x110, 6-Bolt, 28h Rear: DT Swiss 370, 12x148, XD, 6-Bolt, 36t, 32h |
| Tires |
Front: Maxxis Assegai 29"x2.5", 3C MaxxGrip, EXO+ Rear: Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, Double Down |
| Bottom Bracket | SRAM DUB 73mm MTB Wide BB |
| Crankset | SRAM 90 Eagle DUB T-Type Crankset, 32t |
| Shifters | SRAM 90 Eagle T-Type, 12spd |
| Rear Derailleur | SRAM 90 Eagle T-Type, 12spd |
| Cassette/Freewheel | SRAM XS 1275 Eagle T-Type, 10-52t |
| Chain | SRAM GX Eagle T-Type, Flattop, 12spd |
| Brakes | SRAM Maven Base |
| Rotors | SRAM HS2 200mm |
| Handlebars | OneUp Aluminum Bar |
| Tape/Grips | Santa Cruz Bicycles House Grips |
| Stem | OneUp Enduro Stem, 42mm |
| Headset | Cane Creek 50 IS Integrated Headset |
| Seatpost | OneUp Dropper Post, 31.6 |
| Saddle | SDG Bel-Air V3 Lux-Alloy |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Gloss Coral / Large / 29-inch front / 27.5-inch rear | 192219511580 | 58-26280-454-4-908-262501 | SCN303949516 |
| Matte Black / X-Large / 29-inch front / 27.5-inch rear | 192219511597 | 58-26280-454-5-907-262501 | SCN317839646 |
