Details

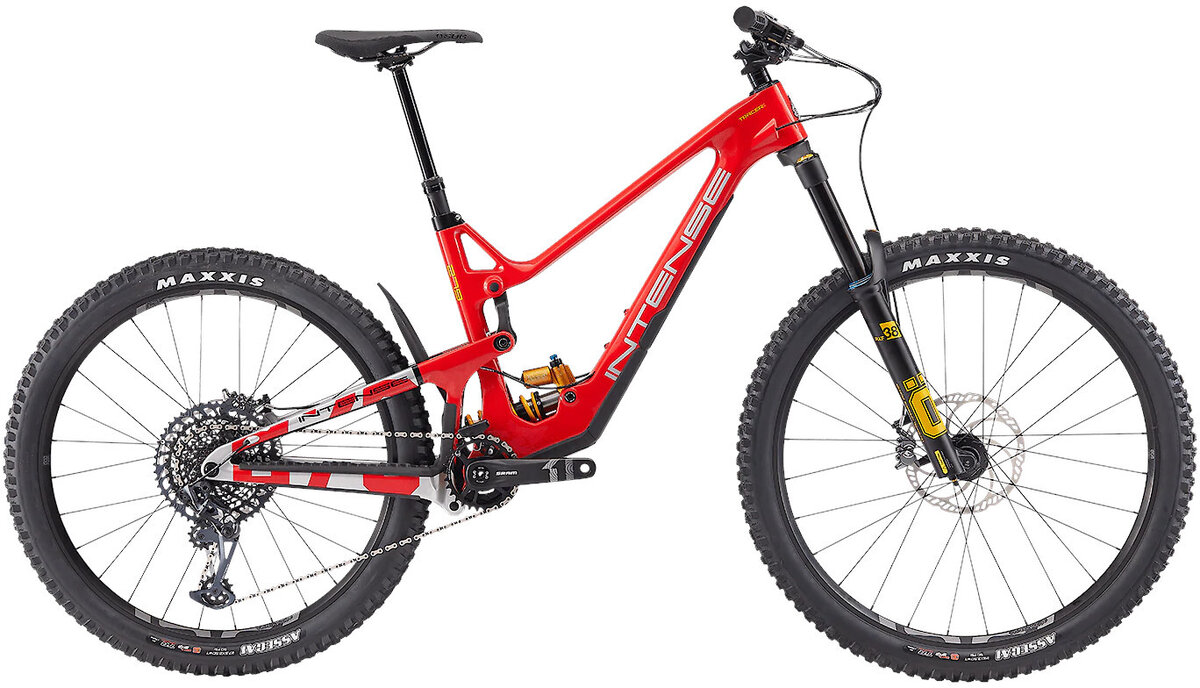

The "S" model designation is given to a build/model that pushes the limits of that segment. The new Tracer S model pushes the limits of Enduro/Freeride with a top-spec Ohlins suspension platform, DH casing tires, and powerful Magura MT7 Pro brakeset.
Borrowing design inspiration and technology from our M29 downhill bike, utilizing its bottom link driven rear shock and suspension design, we have created a bike with plush travel for the roughest of descents, and a firm pedal platform when needed. We’ve positioned the rear shock low down and centered in the frame, allowing the Tracer to descend and handle terrain impeccably.
The Tracer S has been completely re-engineered for 2022. With 170mm (6.7”) of travel and a staggered wheelset (29” front/ 27.5” rear), we have created a bike that is stable and capable while also fast, fun and agile.
Specs
Frame | Carbon Frame. 170mm of rear wheel travel. |
---|---|
Fork | Öhlins RXF 38 m.2 ,170mm, dual air spring, compression and rebound adjustment, solid front axle with pinch bolt (110mm boost spacing) |
Rear Shock | Öhlins TTX22M Coil, 3 position high speed compression, low speed compression and rebound adjustment Shock size/Stroke: 205mm x 65mm upper Trunnion mount, Lower Mounting Hardware: 8mm x 20mm. |
Wheels | E Thirteen LG1 Enduro 30MM Alloy Rim / E Thirteen hub/boost |
Tires | Maxxis Assegai WT |
Crankset | Sram X1 Eagle Carbon 12SP / DUB / 30t / 170MM / Boost / 52mm Chainline |
Shifters | Sram GX Eagle 12SP |
Rear Derailleur | Sram GX Eagle 12SP |
Cassette/Freewheel | Sram XG 1275 Eagle 12sp. 10-52t. |
Brakes | Magura MT7 Pro, 4-piston caliper - Front Rotor Magura Storm HC - 203mm 6-bolt / Rear Rotor Magura Storm HC - 203mm 6-bolt |
Seatpost | E Thirteen Infinite Dropper I-Spec 150mm SM /180mm MD, LG / 210mm XL (Frame Size Specific) |
Pedals | Sold separately |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN |
---|---|---|
Red / Small | 810058932389 | 21TCP7PROS-RED-FJM-NA |
Red / Medium | 810058932372 | 21TCP7PROM-RED-FJM-NA |
Red / Large | 810058932365 | 21TCP7PROL-RED-FJM-NA |
Red / X-Large | 810058932396 | 21TCP7PROX-RED-FJM-NA |
