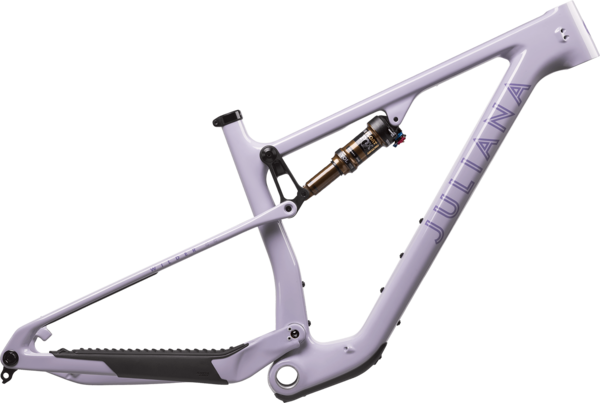

Juliana Wilder CC Frame

Juliana Wilder CC Frame
Purple Sweetness and Lavender
Please select options
Sorry, this item is currently not available to order online. Please call 801-484-0404 (Sugarhouse) or 801-683-0166 (Bountiful) for product details or availability.


Go Wilder

Saving weight means little without retaining an appropriate level of stiffness and responsiveness,, too. So we've taken all the acceleration and out-of-the-saddle sprint qualities of a carbon XC race rocket and fused them with a rear-end that still rails corners like a hardcore trail bike.

This unique XC-trail attitude is also reflected in the geometry. The head tube angle (67.1 degree) and reach (425mm) is a little steeper and shorter than a Joplin to meet the demands of aggressive climbing, yet the Wilder's seat tube angle is a touch slacker and the chainstays a little longer than a Joplin, too, in order to retain that familiar Juliana confidence on descents. And, speaking of chainstays, each chainstay length is specific to the individual frame size, meaning riders of every height enjoy the same handling and performance no matter what.

bike frame with labeled dimensions
Bike Sizes:
A. Reach 412.3mm 437.8mm 457.5mm
B. Stack 587.4mm 597mm 606.5mm
C. Standover 743.5mm 746.4mm 745.4mm
D. Effective Top Tube 568.4mm 597.3mm 621.4mm
E. Head Tube Angle 67.1º 67.1º 67.1º
F. Head Tube Length 90mm 100mm 110mm
G. Seat Tube Angle 75.1º 75º 74.9º
H. Seat Tube Length 405mm 430mm 470mm
I. Bottom Bracket Height 339.9mm 339.7mm 339.6mm
J. Bottom Bracket Drop 32.6mm 32.8mm 32.9mm
M. Wheelbase 1125.8mm 1157mm 1183.2mm
N. Front to Center 695mm 723.7mm 747.4mm
O. Chainstay Length 430.8mm 433.3mm 435.8mm


Frame Wilder CC
Fork 120mm
Rear Shock FOX Float Factory DPS
Wheels 29-inch
Axles 12x148mm
Tires 2.4-inch max
Bottom Bracket 73mm threaded
Chainrings 36t max
Front Derailleur No compatibility
Brakes 160 PM
Headset Integrated (IS41/52)
Seatpost 31.6mm

* Subject to change without notice.

Part Numbers

Option UPC MPN
Purple Sweetness and Lavender / Small 192219207391 68-22247-2-731-6399
Purple Sweetness and Lavender / Medium 192219207414 68-22247-3-731-6399
Purple Sweetness and Lavender / Large 192219207438 68-22247-4-731-6399
