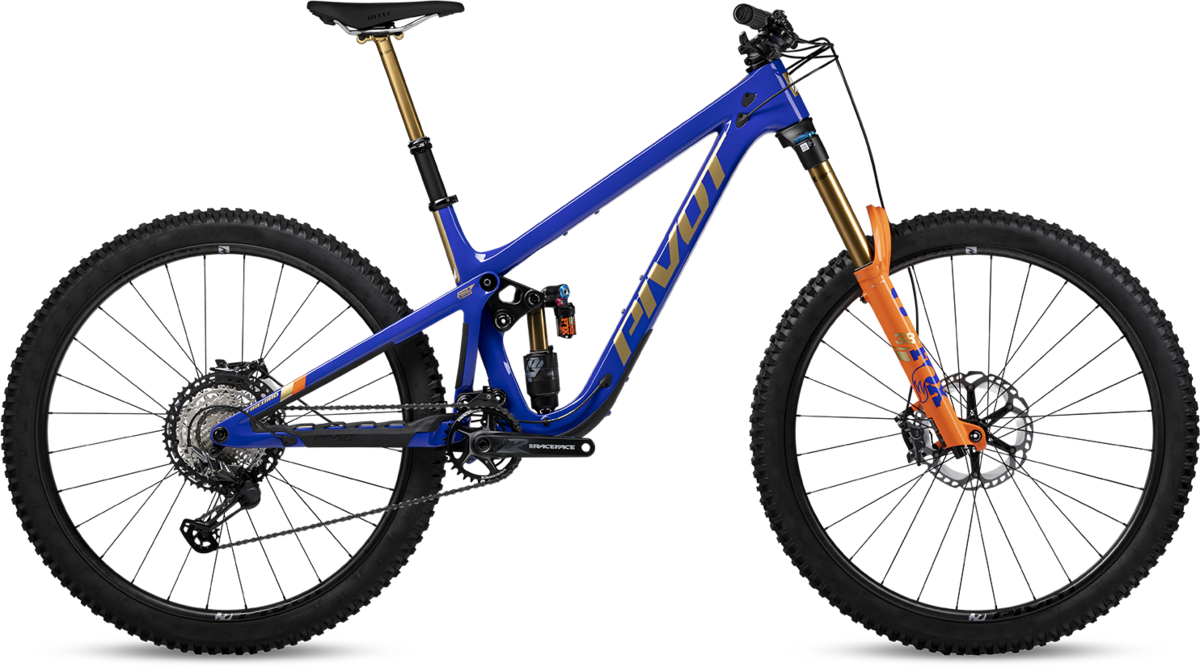

Pivot Cycles Firebird 29 Pro XT - Air (Carbon Wheels)

Pivot Cycles Firebird 29 Pro XT - Air (Carbon Wheels)
$9,399.99
Color:
PFR LTD
Size:
Medium
Please select options Unavailable
Sorry, this item is currently not available to order online. Please call us at 801-484-0404 (Sugarhouse) or 801-683-0166 (Bountiful) for product details or availability.

Details

THE DNA OF VELOCITY
Modern geometry tailored for aggressive riding lets the Firebird rail at warp speed with battleship stability and laser precision. A relaxed head angle, long reach and generous wheelbase are the key ingredients of high-speed composure. Fast up, fast down. Fast.

NOT AS SWEET AS IT LOOKS
The Firebird's Hollow Core carbon construction cleanly disguises its psychotic side with a taut, sturdy, deceptively lightweight frame that calmly gets you out of the most gripped situations, Super-capable suspension, planted handling, perfectly selected components, shaken, not stirred; the cocktail mix for blazing speed. Drink up!

- Pivot's full carbon frame feature size-specific ride tuning, leading edge carbon fiber materials, and Pivot's proprietary hollow core molding technology to ensure that every rider from 5'2" to 6'9" has a bike that feels perfect and performs at the optimum level for their size.
- Long-and-low geometry for a confident, and size specific chainstay lengths refine the EWS Podium performance for different sized riders.
- Phoenix DH-inspired longer dw-link® maximizes the Firebird's rearward wheel-path for erasing square edge bumps and maximizing control.
- 165mm of supple-yet-efficient dw-link™ suspension travel featuring a vertically mounted trunnion metric coil-over or air shocks combined with 170mm front travel for unrivaled suspension performance.
- Equipped with a 44mm offset 170mm-travel Fox Factory and Performance Series 38 FIT Grip2 forks.
- Compatible with both 29" and 27.5" wheel sizes without compromise thanks to the adjustable geometry for 29" 27.5" or MX wheel setups.
- Fits tires up to 29x2.6" or 27.5x2.8" wide.
- 12 x 157mm Super Boost Plus rear spacing adds stiffness and control.
- 31.6mm size seatpost match with the Firebird's short seat tube with deep insertions for longer travel posts.
- Featuring the easy to find UDH rear derailleur hanger for peace of mind when traveling the world.
- 1.5" headtube provides increased front-end stiffness and tracking.
- Hassle-free, full-length, internal cable routing.
- All sizes fit a water bottle inside the front triangle.
- Pivot Tool Dock system compatible with mounts under the top tube and integrated into the underside of the frame.
- Adjustable geometry with a flip chip upper link mount.

Sizes:
SIZESmallMediumLargeX-Large
Rider Height (In) 5'2" - 5'8" 5'9" - 6' 6' - 6°4" 6'3" - 6'9"
Rider Height (m) 1.57 - 1.73 m 1.73 - 1.83 m 1.83 - 1.93 m 1.90 - 2.06 m

Geometry and sizing

Sizes:
HIGH BB Setting
SIZE Small Medium Large X-Large
A-Seat Tube Length 37.5 cm 41 cm 44 cm 47 cm
B-Top Tube Length 59.7 cm 62.3 cm 64 cm 66.4 cm
C-Head Tube Length 9.5 cm 10.8 cm 11.8 cm 12.8 cm
D-Head Tube Angle 64.6° 64.6° 64.6° 64.6°
E-Seat Tube Angle (Eff.) 76.5° 77.0° 77.5° 77.5°
F-Chainstay Length 43 cm 43.3 cm 43.7 cm 44.4 cm
G-Bottom Bracket Height 35.6 cm 35.6 cm 35.6 cm 35.6 cm
H-Bottom Bracket Drop 1.42 cm 1.42 cm 1.42 cm 1.42 cm
I-Standover 66.7 cm 67.8 cm 69.9 cm 70.9 cm
Wheelbase 120.6 cm 123.7 cm 126.6 cm 129.9 cm
Reach 45 cm 47.3 cm 49.3 cm 51.5 cm
Stack 61.2 cm 62.4 cm 63.3 cm 64.2 cm
Sizes:
LOW BB Setting
SIZE Small Medium Large X-Large
A-Seat Tube Length 37.5 cm 41 cm 44 cm 47 cm
B-Top Tube Length 59.8 cm 62.4 cm 64.1 cm 66.5 cm
C-Head Tube Length 9.5 cm 10.8 cm 11.8 cm 12.8 cm
D-Head Tube Angle 64.0° 64.0° 64.0° 64.0°
E-Seat Tube Angle (Eff.) 76.0° 76.5° 77.0° 77.0°
F-Chainstay Length 43.1 cm 43.4 cm 43.8 cm 44.5 cm
G-Bottom Bracket Height 35 cm 35 cm 35 cm 35 cm
H-Bottom Bracket Drop 2 cm 2 cm 2 cm 2 cm
I-Standover 66.2 cm 67.2 cm 69.3 cm 70.4 cm
Wheelbase 120.7 cm 123.9 cm 126.7 cm 130 cm
Reach 44.5 cm 46.8 cm 48.8 cm 51 cm
Stack 61.5 cm 62.7 cm 63.6 cm 64.5 cm

Videos

Part Numbers

Option UPC MPN Store SKU
PFR LTD / Medium 196338169394 00F9CV329CXTA--LLPMDDRPFN FIR41153267S
